Logistic Regression

MSSC 6250 Statistical Machine Learning

Dr. Cheng-Han Yu
Department of Mathematical and Statistical Sciences
Marquette University

Binary Logistic Regression

Non-Gaussian and Non-continuous Response

  • In many applications, the response or error term are nonnormal.

    • Binary response: how an online banking system determine whether or not a transaction is fraudulent based on the user’s IP address.
    • Count response: how weather conditions affect the number of users of a bike sharing program during a particular hour of the day.
  • Besides normal, the response in a generalized linear model (GLM) can be Bernoulli, binomial, Poisson, etc.

  • There is no assumption that \(\mathrm{Var}(y_i)\) is homogeneous: Both \(E(y_i)\) and \(\mathrm{Var}(y_i)\) may vary with the regressors from data point to data point.

  • Ordinary least squares does not apply when the response is not normal.

Classification

  • Linear regression assumes that the response \(Y\) is numerical.
  • In many situations, \(Y\) is categorical.
  • A process of predicting categorical response is known as classification.

Normal vs. COVID vs. Smoking

fake news vs. true news

Regression Function \(f(x)\) vs. Classifier \(C(x)\)

https://daviddalpiaz.github.io/r4sl/classification-overview.html

Soft and Hard Classifiers

Two popular approaches when modeling binary data

  • Soft classifiers
    • Estimate the conditional probabilities \(Pr(Y = k \mid {\bf X})\) for each category \(k\).
    • Use \(\mathbf{1}\{Pr(Y \mid {\bf X}) > c \}\) for classification, where \(c \in(0, 1)\) is a threshold or cutoff.
    • e.g. logistic regression
  • Hard classifiers
    • Directly estimate the classification decision boundary
    • e.g. support vector machines

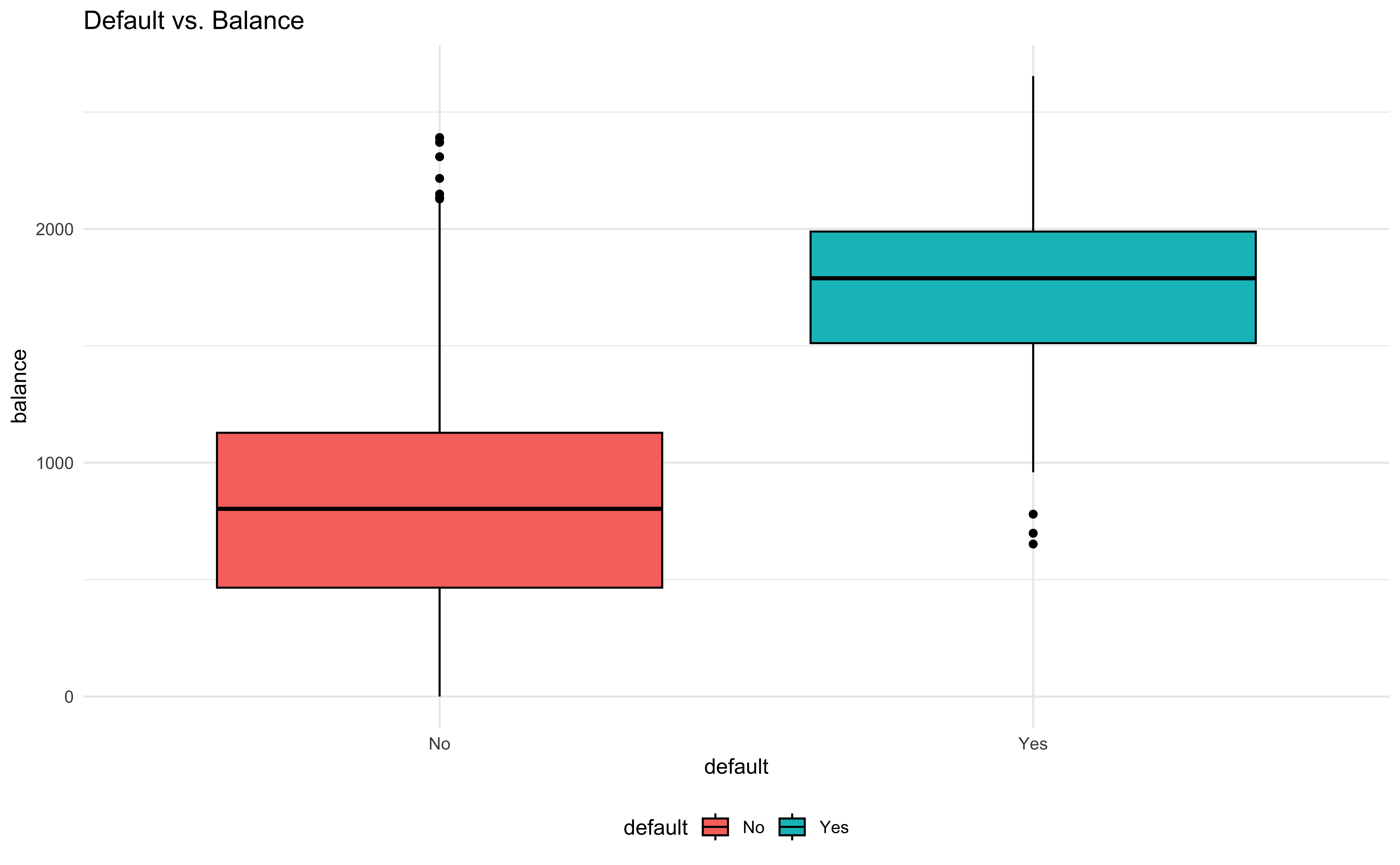

Classification Example

Given the training data \(\{(x_i, y_i)\}_{i=1}^n\), we build a classifier to predict whether people will default on their credit card payment \((Y)\) yes or no, based on monthly credit card balance \((X)\).

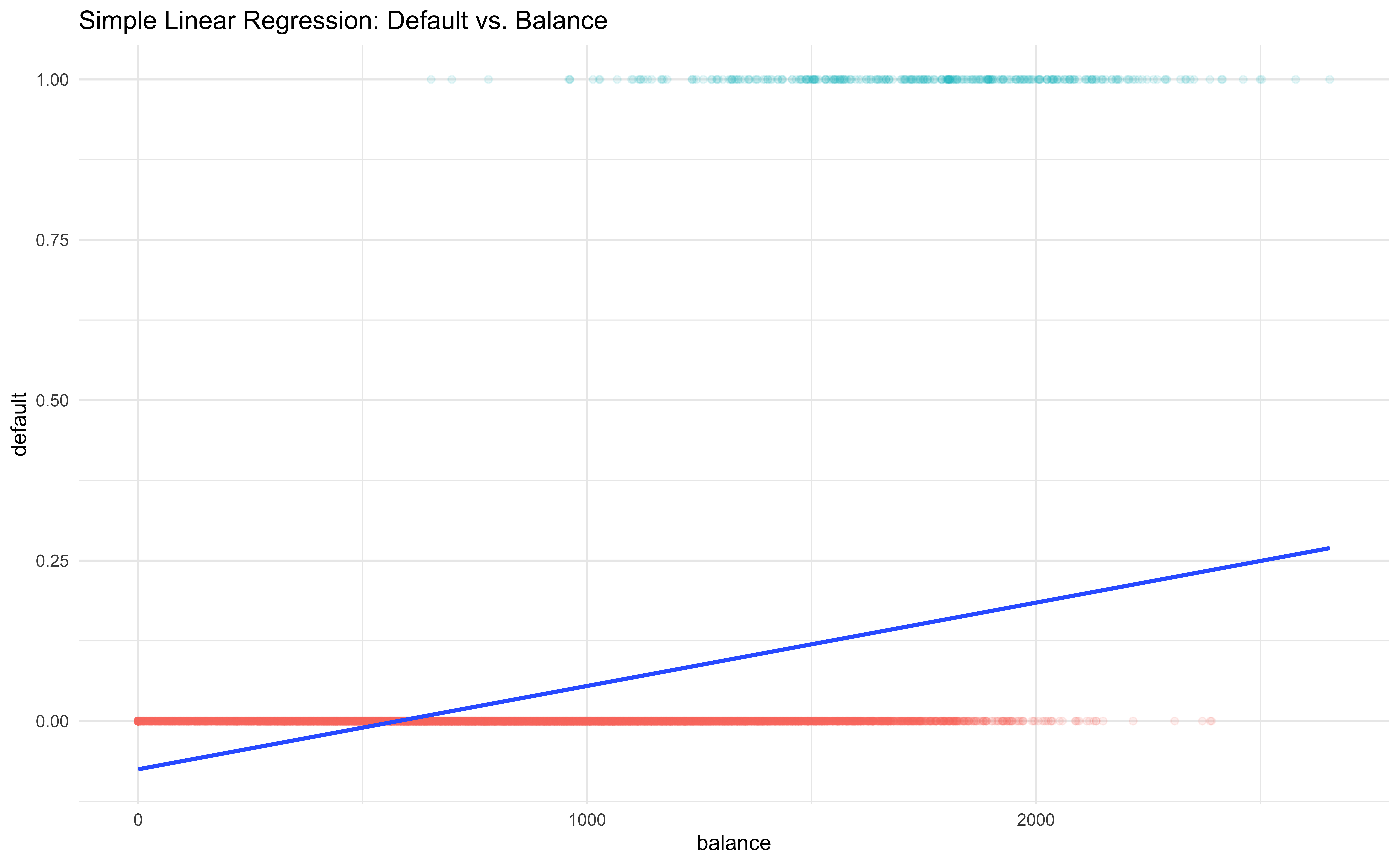

Why Not Linear Regression

\[Y =\begin{cases} 0 & \quad \text{if not default}\\ 1 & \quad \text{if default} \end{cases}\]

  • \(Y = \beta_0 + \beta_1X + \epsilon\), \(\, X =\) credit card balance

What are potential issues with this dummy variable approach?

  • \(\hat{Y} = b_0 + b_1X\) estimates \(P(Y = 1 \mid X) = P(default = yes \mid balance)\), which is equivalent to linear discriminant analysis (LDA) discussed later.

  • However,

Why Not Linear Regression?

  • Probability estimates can be outside \([0, 1]\).

Why Not Linear Regression?

  • Linear regression generally cannot handle more than two categories.

\[Y =\begin{cases} 1 & \quad \text{stroke}\\ 2 & \quad \text{drug overdose} \\ 3 & \quad \text{epileptic seisure} \end{cases}\]

  • The coding

    • suggests an ordering epileptic seisure \(>\) drug overdose \(>\) stroke
    • implies that stroke \(-\) drug overdose \(=\) drug overdose \(-\) epileptic seizure.

Binary Logistic Regression

  • First predict the probability of each category of \(Y\)
  • Predict probability of default using a S-shaped curve.

Framing the Problem: Binary Responses

We use normal distribution for numerical \(y\). What distribution we can use for binary \(y\) that takes value 0 or 1?

  • Each outcome default \((y = 1)\) and not default \((y = 0)\) is a Bernoulli variable. But,
  • The probability of “success” \(\pi\) is not constant but varies with predictor values!

\[ y_i \mid x_i \stackrel{indep}{\sim} \text{Bernoulli}(\pi_i = \pi(x_i)) = \text{binomial}(m=1,\pi = \pi_i) \]

  • \(X =\) balance. \(x_1 = 2000\) has a larger \(\pi_1 = \pi(2000)\) than \(\pi_2 = \pi(500)\) with \(x_2 = 500\)
  • Credit cards with a higher balance are more likely to be defaulted.

Logistic Function

Instead of predicting \(y_i\) directly, we use the predictors to model its probability of success, \(\pi_i\).

But how?

  • Transform \(\pi \in (0, 1)\) into a variable \(\eta \in (-\infty, \infty)\). Then construct a linear predictor on \(\eta\): \(\eta_i = \mathbf{x}_i'\boldsymbol \beta\)
  • Logit function: For \(0 < \pi < 1\)

\[\eta = \text{logit}(\pi) = \ln\left(\frac{\pi}{1-\pi}\right)\]

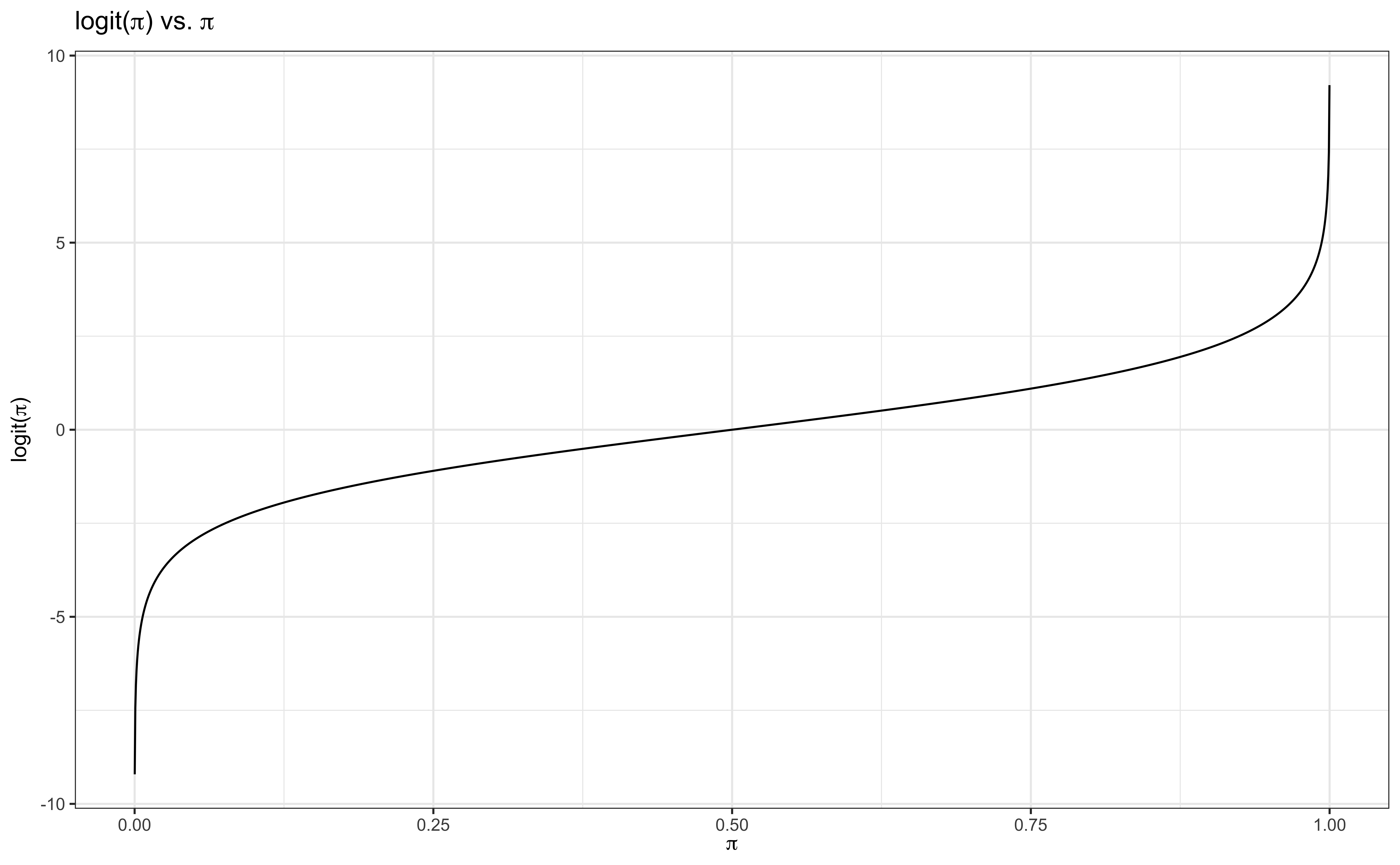

Logit function \(\eta = \text{logit}(\pi) = \ln\left(\frac{\pi}{1-\pi}\right)\)

Logistic Function

  • The logit function \(\eta = \text{logit}(\pi) = \ln\left(\frac{\pi}{1-\pi}\right)\) takes a value \(\pi \in (0, 1)\) and maps it to a value \(\eta \in (-\infty, \infty)\).
  • Logistic function: \[\pi = \text{logistic}(\eta) = \frac{1}{1+\exp(-\eta)} \in (0, 1)\]
  • The logistic (sigmoid) function takes a value \(\eta \in (-\infty, \infty)\) and maps it to a value \(\pi \in (0, 1)\).
  • Once \(\eta\) is estimated by the linear regression, we use the logistic function to transform \(\eta\) back to the probability.

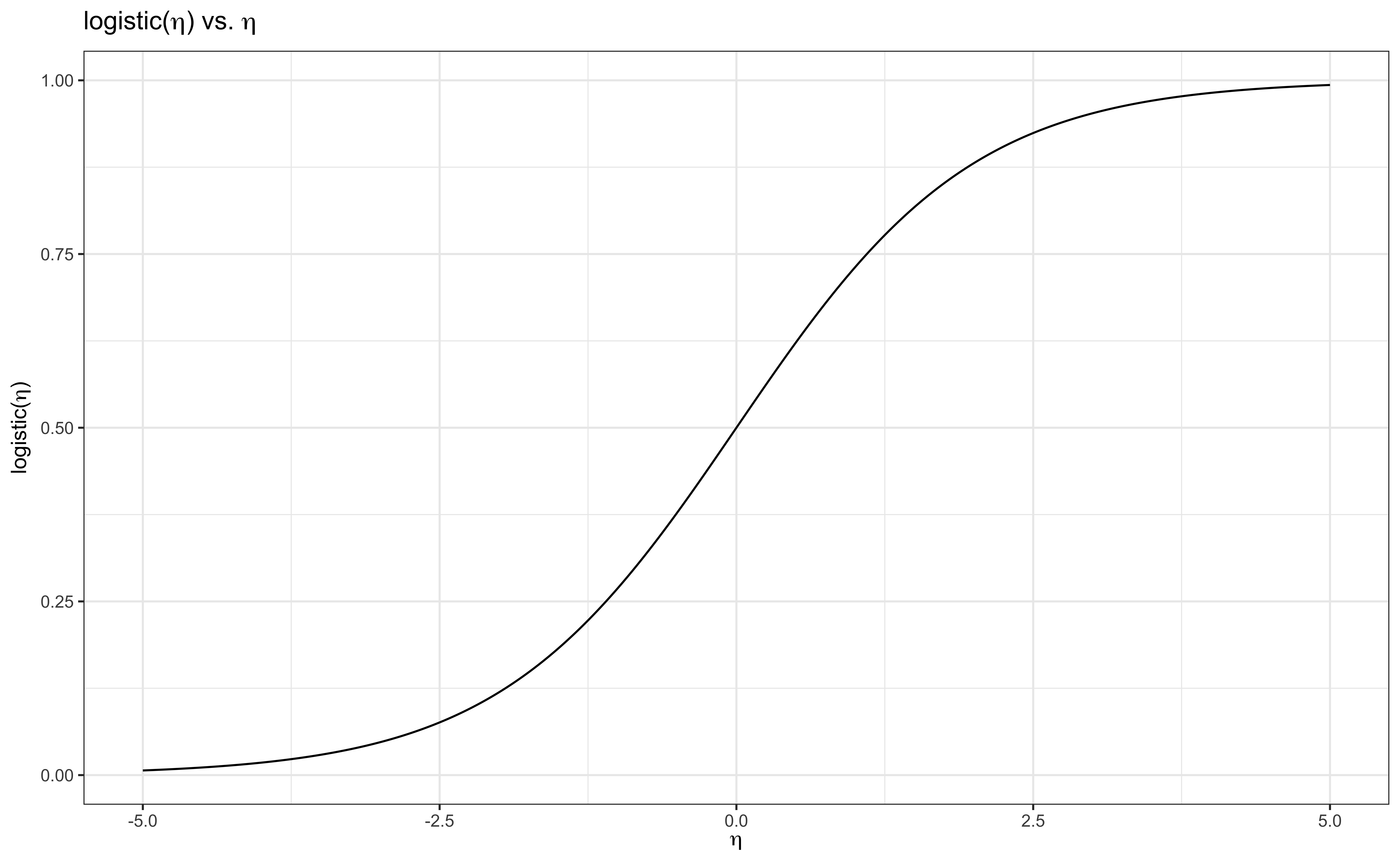

Logistic (Sigmoid) Function \(\pi = \text{logistic}(\eta) = \frac{1}{1+\exp(-\eta)}\)

Logistic Regression Model

For \(i = 1, \dots, n\) and with \(p\) predictors: \[Y_i \mid \pi_i({\bf x}_i) \stackrel{indep}{\sim} \text{Bernoulli}(\pi_i), \quad {\bf x}_i' = (x_{i1}, \dots, x_{ip})\] \[\text{logit}(\pi_i) = \ln \left( \frac{\pi_i}{1 - \pi_i} \right) = \eta_i = \beta_0+\beta_1 x_{i1} + \cdots + \beta_p x_{ip} = {\bf x}_i'\boldsymbol \beta\]

  • The \(\eta_i = \text{logit}(\pi_i)\) is a link function that links the linear predictor and the mean of \(Y_i\).

\[\small E(Y_i) = \pi_i = \frac{1}{1 + \exp(-{\bf x}_i'\boldsymbol \beta)}\] \[\small \hat{\pi}_i = \frac{1}{1 + \exp(-{\bf x}_i'\hat{\boldsymbol \beta} )}\]

Default Data in ISLR2

data("Default"); head(Default, 10)
   default student balance income
1       No      No     730  44362
2       No     Yes     817  12106
3       No      No    1074  31767
4       No      No     529  35704
5       No      No     786  38463
6       No     Yes     920   7492
7       No      No     826  24905
8       No     Yes     809  17600
9       No      No    1161  37469
10      No      No       0  29275
str(Default)
'data.frame':   10000 obs. of  4 variables:
 $ default: Factor w/ 2 levels "No","Yes": 1 1 1 1 1 1 1 1 1 1 ...
 $ student: Factor w/ 2 levels "No","Yes": 1 2 1 1 1 2 1 2 1 1 ...
 $ balance: num  730 817 1074 529 786 ...
 $ income : num  44362 12106 31767 35704 38463 ...

glm()

logit_fit <- glm(default ~ balance, data = Default,
                 family = binomial)
coef(summary(logit_fit))
            Estimate Std. Error z value Pr(>|z|)
(Intercept) -10.6513    0.36116     -29 3.6e-191
balance       0.0055    0.00022      25 2.0e-137

\(\hat{\eta} = \text{logit}(\hat{\pi}) = \ln \left( \frac{\hat{\pi}}{1 - \hat{\pi}}\right) = -10.65 + 0.0055 \times \text{balance}\)

Interpretation of Coefficients

The ratio \(\frac{\pi}{1-\pi} \in (0, \infty)\) is called the odds of some event.

  • Example: If 1 in 5 people will default, the odds is 1/4 since \(\pi = 0.2\) implies an odds of \(0.2/(1−0.2) = 1/4\).

\[\ln \left( \frac{\pi(x)}{1 - \pi(x)} \right)= \beta_0 + \beta_1x\]

  • Increasing \(x\) by one unit
    • changes the log-odds by \(\beta_1\)
    • multiplies the odds by \(e^{\beta_1}\)
  • \(\beta_1\) does not correspond to the change in \(\pi(x)\) associated with a one-unit increase in \(x\).
  • \(\beta_1\) is the change in log odds associated with one-unit increase in \(x\).

Interpretation of Coefficients

            Estimate Std. Error z value Pr(>|z|)
(Intercept)  -10.651       0.36     -29        0
balance        0.005       0.00      25        0
  • \(\hat{\eta} = \text{logit}(\hat{\pi}) = \ln \left( \frac{\hat{\pi}}{1 - \hat{\pi}}\right) = -10.65 + 0.0055 \times \text{balance}\)
  • \(\hat{\eta}(x) = \hat{\beta}_0 + \hat{\beta}_1x\)
  • \(\hat{\eta}(x+1) = \hat{\beta}_0 + \hat{\beta}_1(x+1)\)
  • \(\hat{\eta}(x+1) - \hat{\eta}(x) = \hat{\beta}_1 = \ln(\text{odds}_{x+1}) - \ln(\text{odds}_{x})\)
  • One-unit increase in balance increases the log odds of default by 0.005 units.
  • The odds ratio, \(\widehat{OR} = \frac{\text{odds}_{x+1}}{\text{odds}_{x}} = e^{\hat{\beta}_1} = e^{0.0055} = 1.005515\).
  • The odds of default increases by 0.5% with additional one unit of credit card balance.

Pr(default) When Balance is 2000

\[\log\left(\frac{\hat{\pi}}{1-\hat{\pi}}\right) = -10.65+0.0055\times 2000\]

\[ \hat{\pi} = \frac{1}{1+\exp(-(-10.65+0.0055 \times 2000)} = 0.586\]

pi_hat <- predict(logit_fit, type = "response")
eta_hat <- predict(logit_fit, type = "link")  ## default gives us b0 + b1*x
predict(logit_fit, newdata = data.frame(balance = 2000), type = "response")
   1
0.59

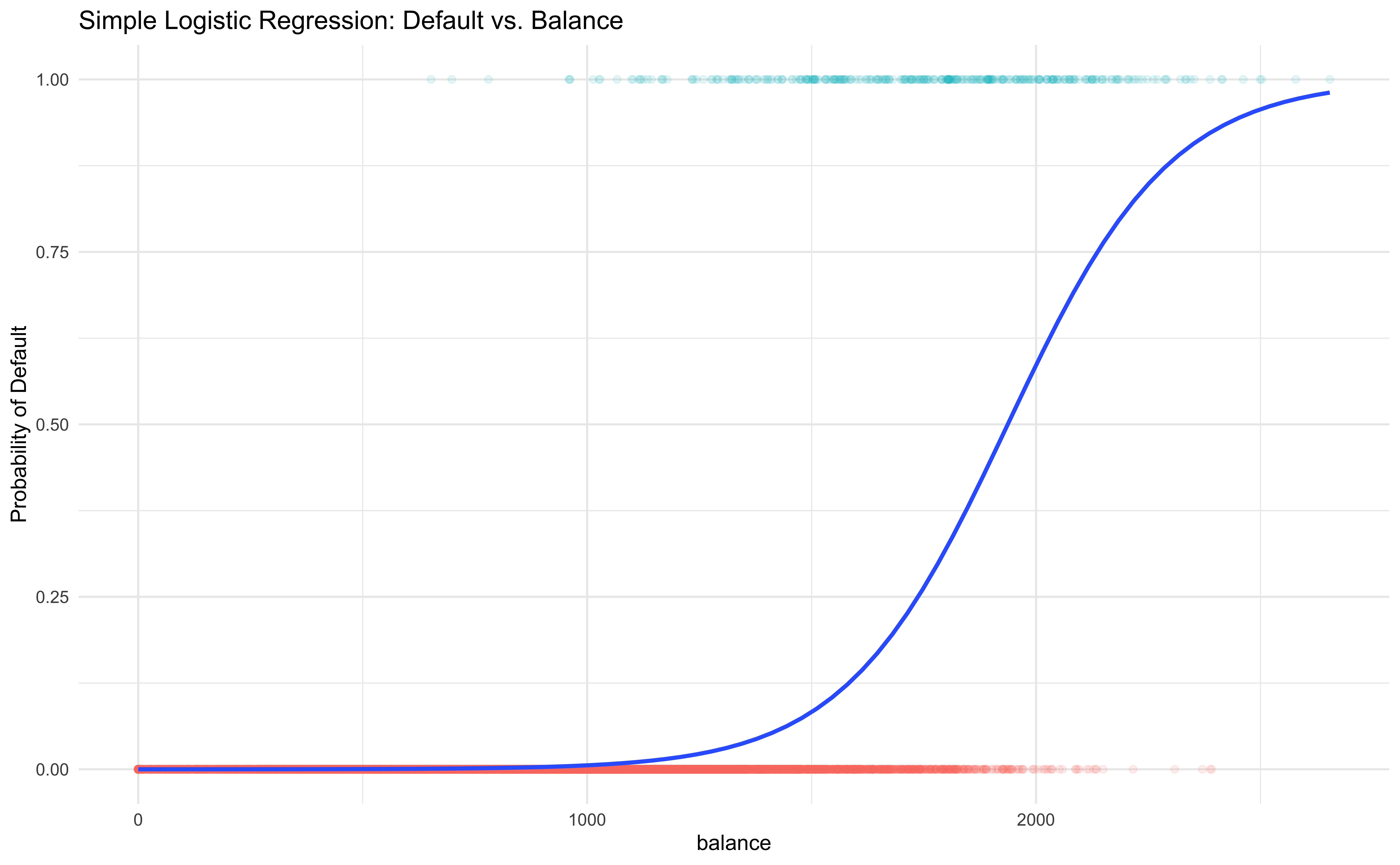

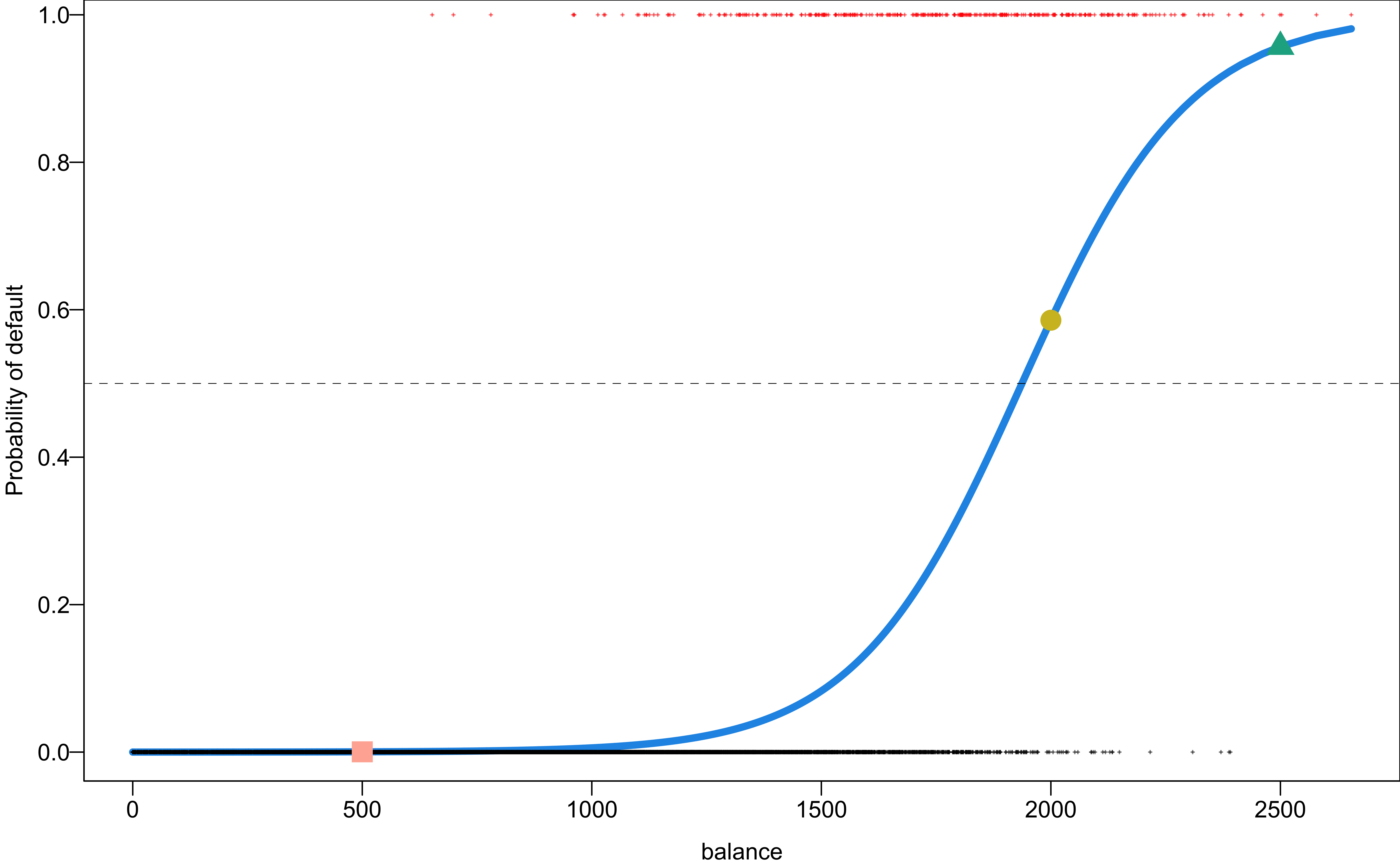

Probability Curve

What is the probability of default when the balance is 500? What about balance 2500?

  • 500 balance: Pr(default) = 0
  • 2000 balance: Pr(default) = 0.59
  • 2500 balance: Pr(default) = 0.96

Maximum Likelihood Estimation

  • glm() uses maximum likelihood to estimate the parameters \(\boldsymbol \beta\).

The log-likelihood is given by

\[\ell(\boldsymbol \beta) = \sum_{i=1}^n \log \, p(y_i \mid x_i, \boldsymbol \beta).\]

Using Bernoulli probabilities, we have

\[\begin{align} \ell(\boldsymbol \beta) =& \sum_{i=1}^n \log \left\{ \pi(\mathbf{x}_i)^{y_i} [1-\pi(\mathbf{x}_i)]^{1-y_i} \right\}\\ =& \sum_{i=1}^n y_i \log \frac{\pi(\mathbf{x}_i)}{1-\pi(\mathbf{x}_i)} + \log [1-\pi(\mathbf{x}_i)] \\ =& \sum_{i=1}^n y_i \mathbf{x}_i' \boldsymbol \beta- \log [ 1 + \exp(\mathbf{x}_i' \boldsymbol \beta)] \end{align}\]

Maximum Likelihood Estimation

  • We can use Newton’s method that needs the gradient and Hessian matrix.

\[\boldsymbol \beta^{\text{new}} = \boldsymbol \beta^{\text{old}} - \left[ \frac{\partial ^2 \ell(\boldsymbol \beta)}{\partial \boldsymbol \beta\partial \boldsymbol \beta'}\right] ^{-1}\frac{\partial \ell(\boldsymbol \beta)}{\partial \boldsymbol \beta}\]

x <- as.matrix(cbind("intercept" = 1, Default$balance))
y <- as.matrix(as.numeric(Default$default) - 1)
beta <- rep(0, ncol(x))  ## start with 0

optim(beta, fn = my_loglik, gr = my_gradient, method = "BFGS",
      x = x, y = y,
      control = list("fnscale" = -1))$par # "fnscale" = -1 for maximization
[1] -10.6454   0.0055

Evaluation1

  • Confusion Matrix
True 0 True 1
Predict 0 True Negative (TN) False Negative (FN)
Predict 1 False Positive (FP) True Positive (TP)
  • Sensitivity (True Positive Rate) \(= P( \text{predict 1} \mid \text{true 1}) = \frac{TP}{TP+FN}\)

  • Specificity (True Negative Rate) \(= P( \text{predict 0} \mid \text{true 0}) = \frac{TN}{FP+TN}\)

  • Accuracy \(= \frac{TP + TN}{TP+FN+FP+TN} = \frac{1}{m}\sum_{j=1}^mI(y_j = \hat{y}_j)\), where \(y_j\)s are true test labels and \(\hat{y}_j\)s are their corresponding predicted label.

A good classifier is one which the test accuracy rate is highest, or test error rate \(\frac{1}{m}\sum_{j=1}^mI(y_j \ne \hat{y}_j)\) is smallest.

Confusion Matrix

pred_prob <- predict(logit_fit, type = "response")
table(pred_prob > 0.5, Default$default)

          No  Yes
  FALSE 9625  233
  TRUE    42  100
caret::confusionMatrix()
yardstick::conf_mat()

Receiver Operating Characteristic (ROC) Curve

library(ROCR)

# create an object of class prediction
pred <- ROCR::prediction(
    predictions = pred_prob,
    labels = Default$default)

# calculates the ROC curve
roc <- ROCR::performance(
    prediction.obj = pred,
    measure = "tpr",
    x.measure = "fpr")
plot(roc, colorize = TRUE, lwd = 3)

Area Under Curve (AUC)

Find the area under the curve:

## object of class 'performance'
auc <- ROCR::performance(
    prediction.obj = pred,
    measure = "auc")
auc@y.values
[[1]]
[1] 0.95

Threshold 0.5 Issue

  • Threshold 0.5 may be inappropriate if
    • imbalanced data or skewed class distribution in training
    • the cost of one type of misclassification is more important than another.

Optimal Threshold

From the training set, choose the cut-off that maximizes

  • G-Mean \(= \sqrt{\text{TPR} * \text{TNR}}\) (geometric mean of TPR and TNR)

  • Youden’s J index \(= \text{TPR} + \text{TNR} - 1\) (the distance to the 45 degree identity line)

that minimizes

\(\sqrt{(1 - \text{TPR})^2 + (1 - \text{TNR})^2}\) (the distance to the optimal point)

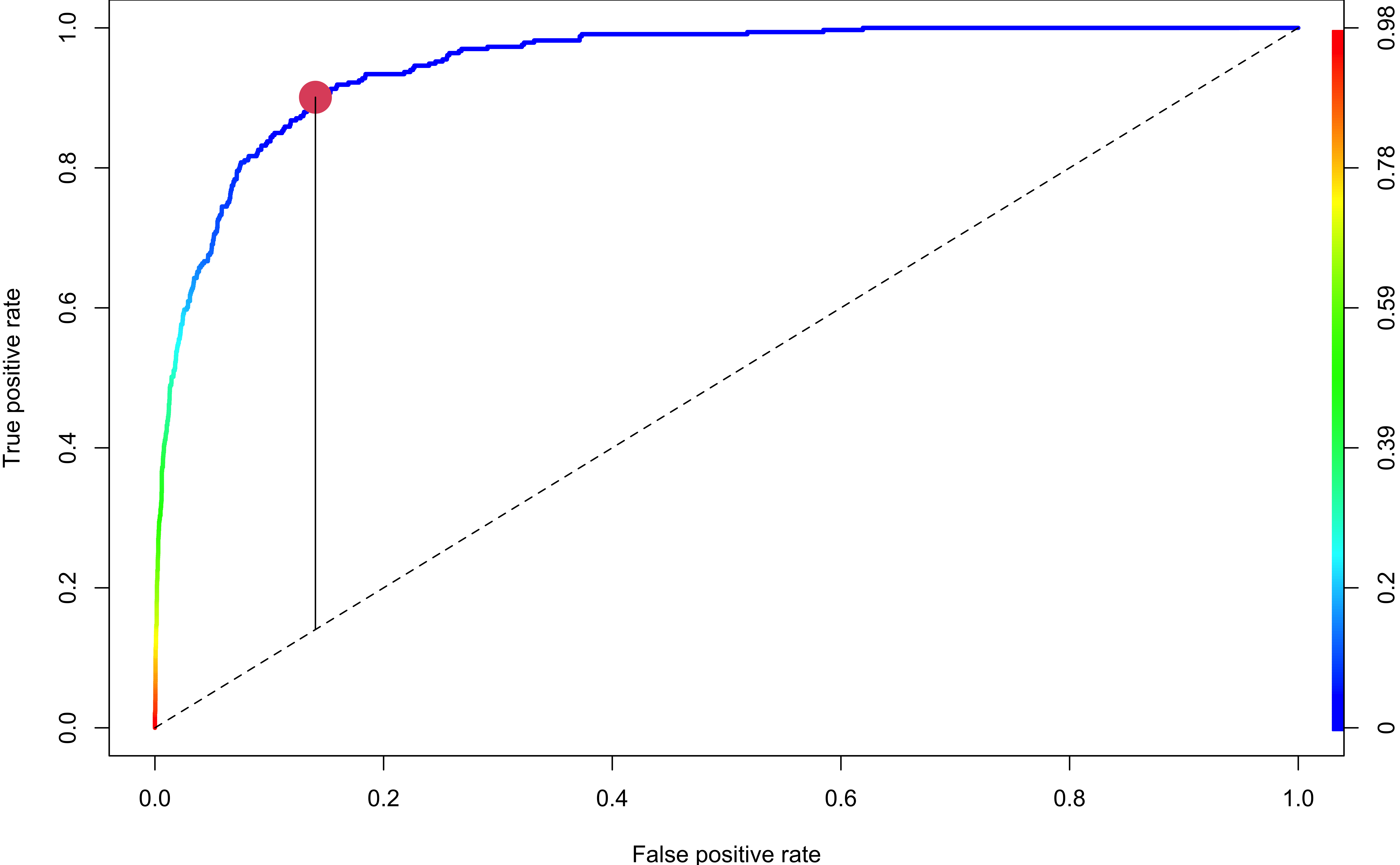

Optimal Threshold

With Youden’s J index, the optimal threshold is \(3.18\%\).

Multinomial Logistic Regression

Multinomial Logistic Regression

  • When classifying \(K > 2\) categories, we can consider multinomial logistic regression1.

  • The response should be nominal. If \(Y_i\) is ordinal, we should consider the ordinal regression.

Multinomial Data

Rows: 200
Columns: 3
$ prog  <fct> vocation, general, vocation, vocation, vocation, general, vocati…
$ ses   <fct> low, middle, high, low, middle, high, middle, middle, middle, mi…
$ write <dbl> 35, 33, 39, 37, 31, 36, 36, 31, 41, 37, 44, 33, 31, 44, 35, 44, …
  • Response:
    • prog (program type: general, academic, vocation)
  • Predictors:
    • ses (social economic status: low, middle, high)
    • write (writing score)

Multinomial Logit - Variable Association

Program type is affected by social economic status

        prog
ses      general academic vocation
  low         16       19       12
  middle      20       44       31
  high         9       42        7

and writing score

          M  SD
general  51 9.4
academic 56 7.9
vocation 47 9.3

The level (coding order) of prog is

[1] "general"  "academic" "vocation"

Multinomial Logit - Setting Baseline

multino_data$prog2 <- relevel(multino_data$prog, ref = "academic")
levels(multino_data$prog2)
[1] "academic" "general"  "vocation"
  • \(K = 3\) (academic = 1, general = 2, vocation = 3)
  • For ses, low = 1, middle = 2, high = 3

\[\log \left( \frac{Pr(prog = general)}{Pr(prog = academic)}\right) = b_{10} + b_{11}(ses = 2) + b_{12}(ses = 3) + b_{13}write\]

\[\log \left( \frac{Pr(prog = vocation)}{Pr(prog = academic)}\right) = b_{20} + b_{21}(ses = 2) + b_{22}(ses = 3) + b_{23}write\]

  • \(b_{13}\): All others held constant, the amount changed in the log odds of being in general vs. academic program as write increases one unit.

  • \(b_{21}\) All others held constant, the amount changed in the log odds of being in vocation vs. academic program if moving from ses = "low" to ses = "middle".

Multinomial Logit - nnet::multinom()

multino_fit <- nnet::multinom(prog2 ~ ses + write, data = multino_data, trace = FALSE)
summ <- summary(multino_fit)
summ$coefficients
         (Intercept) sesmiddle seshigh  write
general          2.9     -0.53   -1.16 -0.058
vocation         5.2      0.29   -0.98 -0.114


  • glmnet() uses the softmax coding that treats all \(K\) classes symmetrically, and coefficients have a different meaning. (ISL eq. (4.13), (4.14))

  • The fitted values, predictions, log odds between any pair of classes, and other key model outputs remain the same.

glmnet(x = input_matrix, y = categorical_vector, family = "multinom",
       family = "multinomial", lambda = 0)

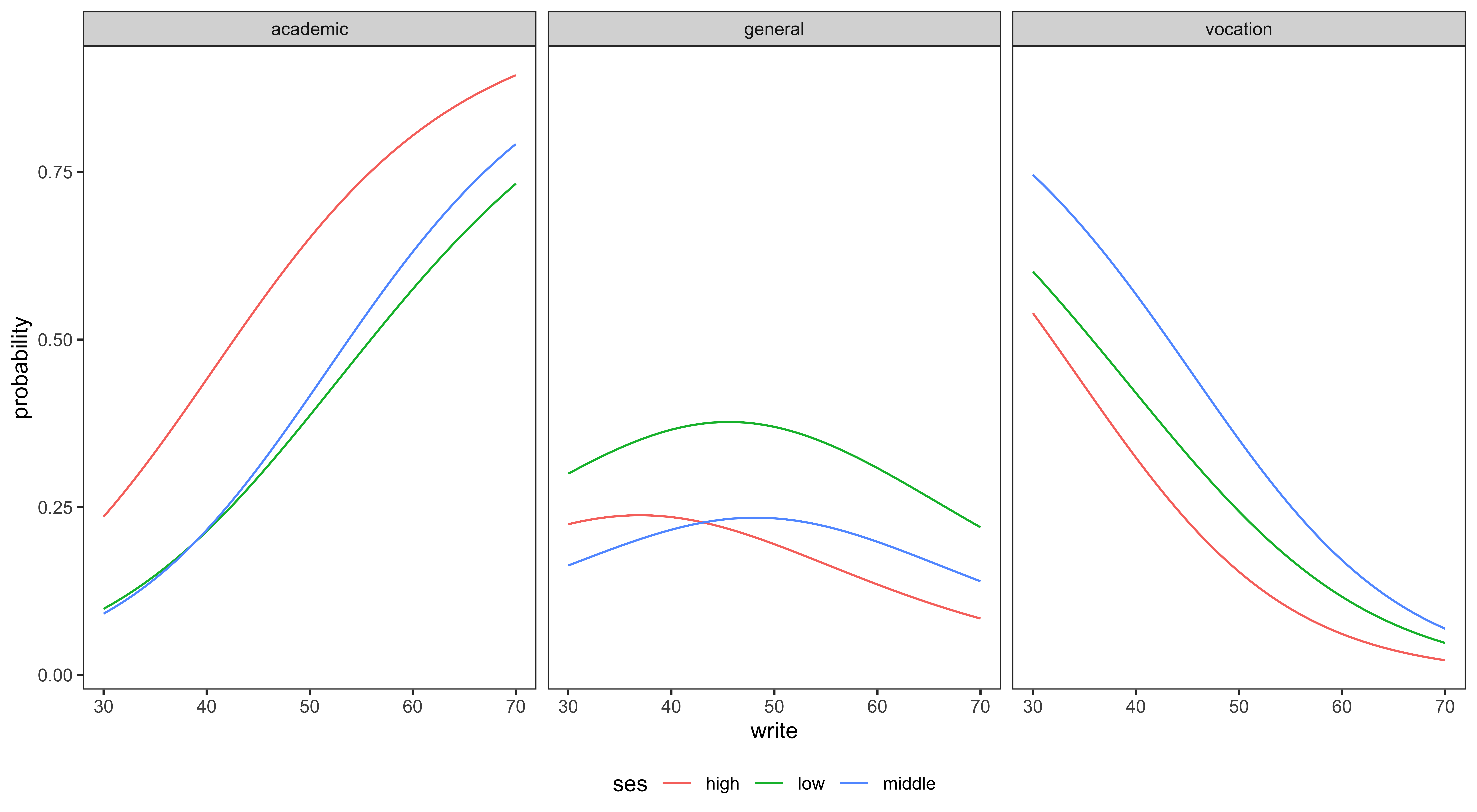

Multinomial Logit - Estimated Probability

head(fitted(multino_fit))
  academic general vocation
1     0.15    0.34     0.51
2     0.12    0.18     0.70
3     0.42    0.24     0.34
4     0.17    0.35     0.48
5     0.10    0.17     0.73
6     0.35    0.24     0.41
  • Hold write at its mean and examine the predicted probabilities for each level of ses.
dses <- data.frame(ses = c("low", "middle", "high"),
                   write = mean(multino_data$write))
predict(multino_fit, newdata = dses, type = "probs")
  academic general vocation
1     0.44    0.36     0.20
2     0.48    0.23     0.29
3     0.70    0.18     0.12

Multinomial Logit - Probability Curve

Generalized Linear Models

Generalized Linear Models in Greater Generality

  • Conditional on \(\mathbf{X}\), the response \(Y\) belongs to a certain family of distribution.1
    • Linear regression: Gaussian
    • Logistic regression: Bernoulli, binomial, multinomial
  • Model the mean of \(Y\) as a function of the predictors.
    • Linear regression: \(E(Y \mid \mathbf{x}) = \mathbf{x}'\boldsymbol \beta\)
    • Logistic regression: \(E(Y \mid \mathbf{x}) = P(Y=1 \mid \mathbf{x}) = \pi(\mathbf{x}) = \frac{e^{\mathbf{x}'\boldsymbol \beta}}{1 + e^{\mathbf{x}'\boldsymbol \beta}}\)
  • In general, with \(E(Y \mid \mathbf{x}) = \mu\), the link function \(\eta(\mu) = {\bf x}'\boldsymbol \beta\) transforms \(\mu\) so that the transformed mean is a linear function of predictors!
    • Linear regression: \(\eta(\mu) = \mu\)
    • Logistic regression: \(\eta(\mu) = \log(\mu/(1-\mu))\)

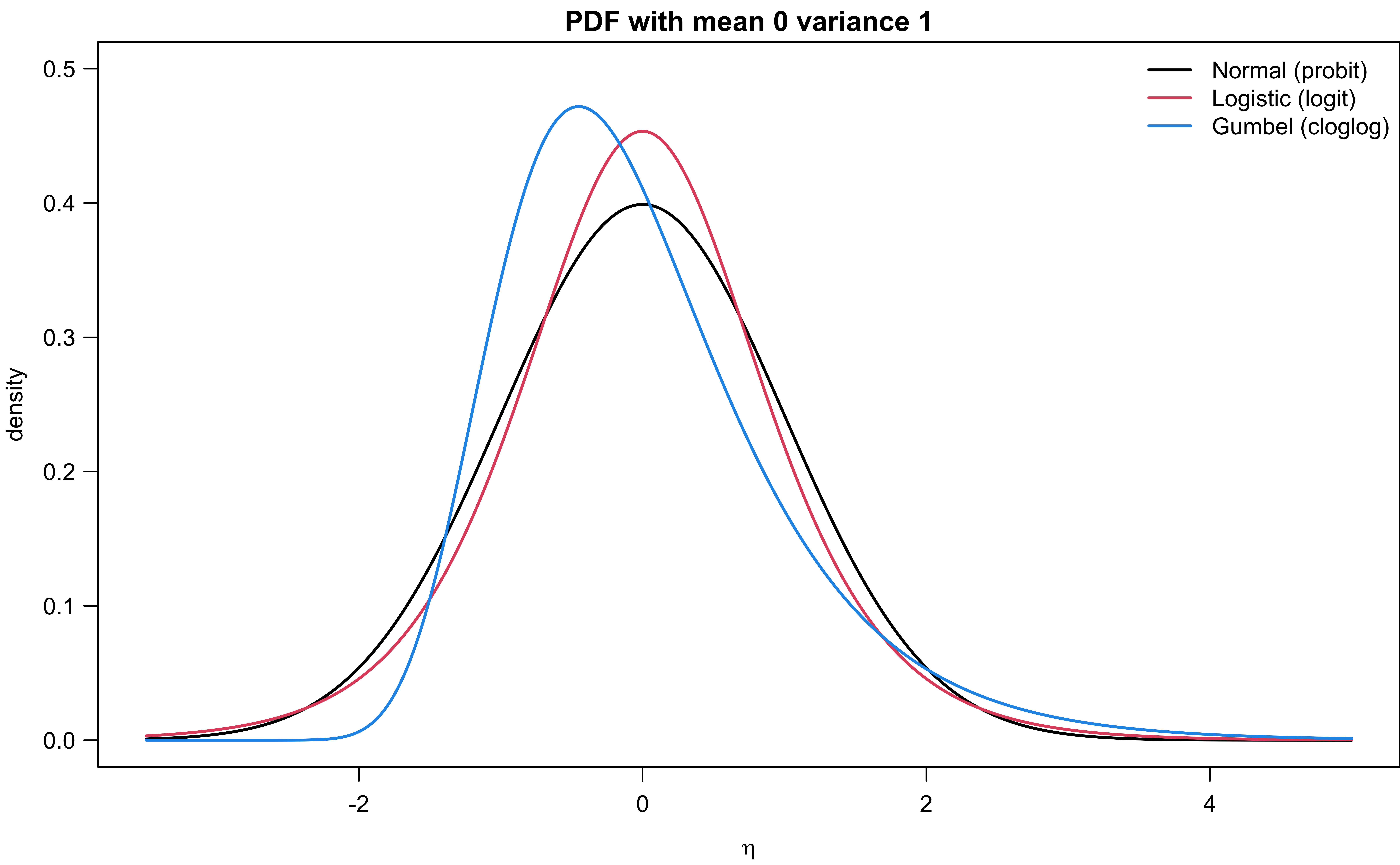

PDF

  • Normal and logistic density are symmetric, while Gumbel is right skewed.

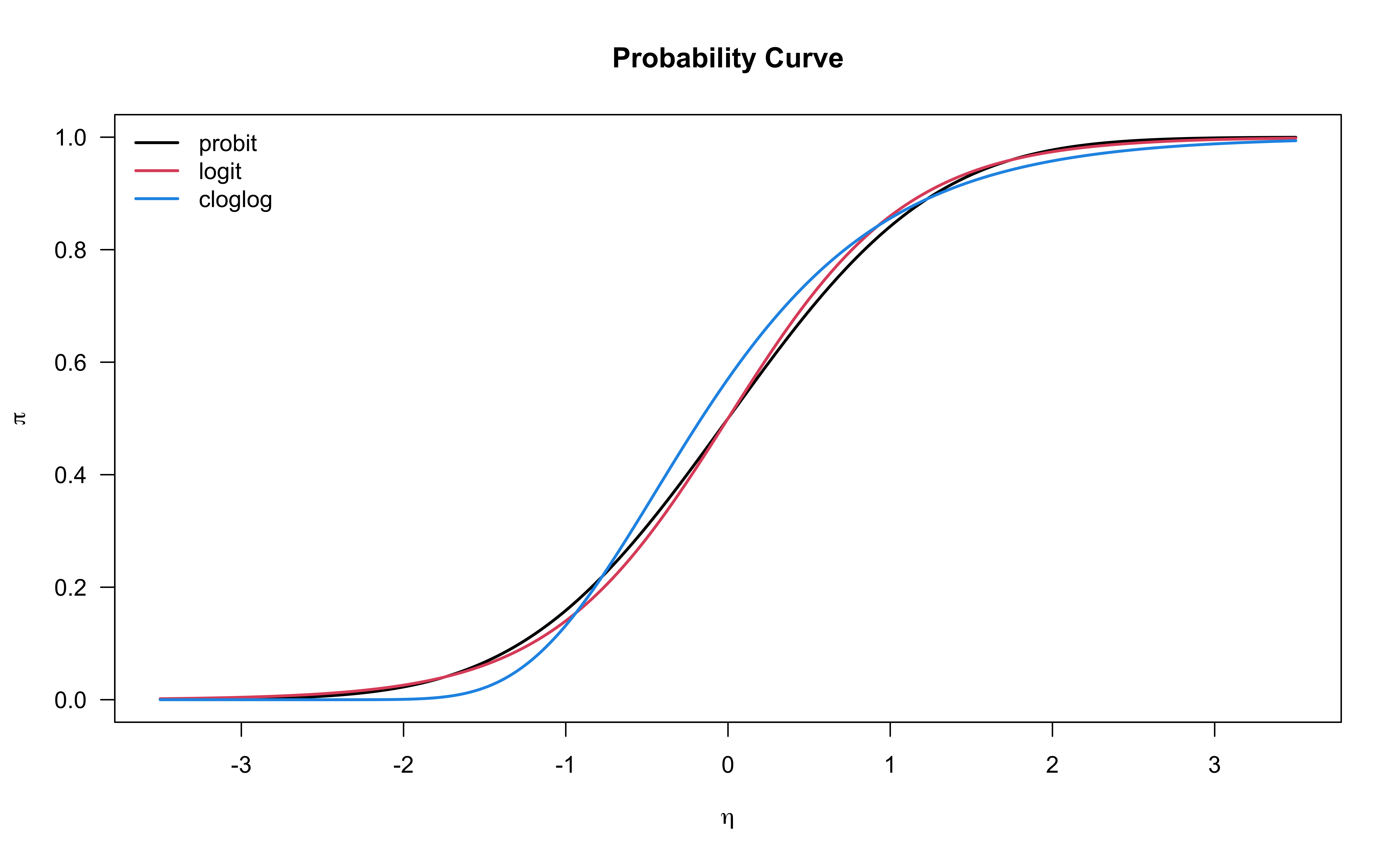

Probability Curve

Other Topics

  • Repeated measures and binomial logistic regression

  • Regression diagnostics for binary data

  • Penalized logistic regression

  • Exponential family

  • Poisson regression
